Flammability Testing Machine ISO 11925-2 Single Flame Source Tester For Building Material
ISO 11925-2 Single Flame Source Tester Product Introduction:
The building material flammability tester is a test instrument designed and prepared according to GB/T 8626-2007 "Test Method for Flammability of Building Materials", which is suitable for determining whether building materials are flammable. The building material flammability tester is a method of measuring the flammability of building products by directly impacting a vertically placed specimen with a small flame without external radiation. The false flame height can easily locate the placement of the specimen, and the flame height measuring device can accurately determine the size of the flame required by the standard. The programmable relay displays the test time, specimen combustion state, and gas introduction time of the entire test, so that the test personnel can clearly observe the entire process of the test.
ISO 11925-2 Single Flame Source Tester Standards:
EN ISO 11925-2
DIN 53438
DIN4102-1
GB/T 8626 Test methods for flammability of building materials
ISO 11925-2 Single Flame Source Tester Technical Specification:
| Product name | ISO 11925 Single Flame Source Tester Flammability Analyzer for Building Materials |
| Standard | ISO11925; DIN53438; DIN4102 |
| Application | Building Materials; Rail; IMO |
| Weight | About 50kg |
| Dimension | 400mm(W)*700mm(D)*600(H) |
| Power | AC 220V, 50/60Hz, 10A |
ISO 11925-2 Single Flame Source Tester Features:
1. The test box, test bracket, specimen clamp, etc. of the building material flammability test machine are made of stainless steel, which ensures the corrosion resistance of the equipment, enhances the service life of the equipment, and makes the appearance quality of the chassis excellent and the mechanical strength strong.
2. The combustion control system adopts a propane solenoid valve to automatically control the on and off of propane gas, ensuring the safety of equipment use.
3. The burner in the test device is equipped with a standard measuring flame scale, and the burner flame adjustment is convenient, flexible and accurate.
4. The specimen clamp is strictly made according to the structure specified by the standard, the specimen installation speed is fast, and the combustion test process is good.
5. Key switch design, servo motor control, reset control.
6. The up and down displacement limit switch is used in the trolley motion system, and the flame angle direction is accurate during the test.
7. The trolley is equipped with a pull rod, which is very convenient to adjust the distance between the positioning flame height and the bottom center of the specimen.
8. The air path in the entire equipment has good air tightness, and adopts a nylon tube with good material, pressure resistance and explosion proof, which is effective in corrosion resistance. Make the life of the test equipment longer.

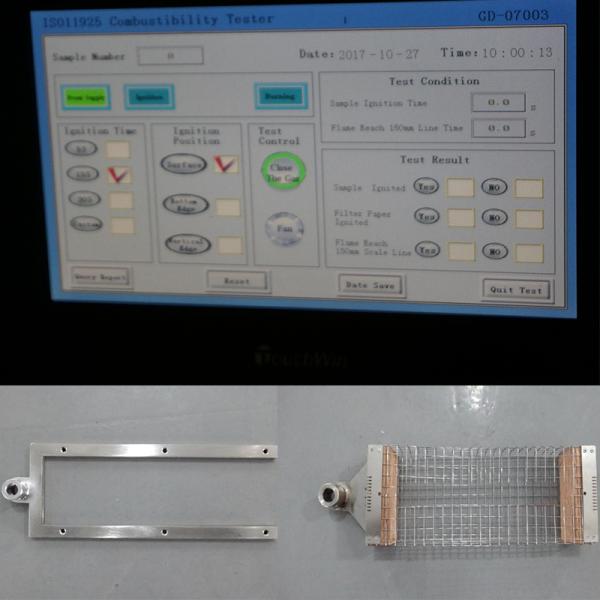

9. The central control device uses imported Omron programmable relays with a high degree of automation.
10. During the test automatic control process, you can follow the detailed product manual and execute the steps. The entire test operation is simple and easy to learn.
